Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Safety belts and retractors are a single assembly.

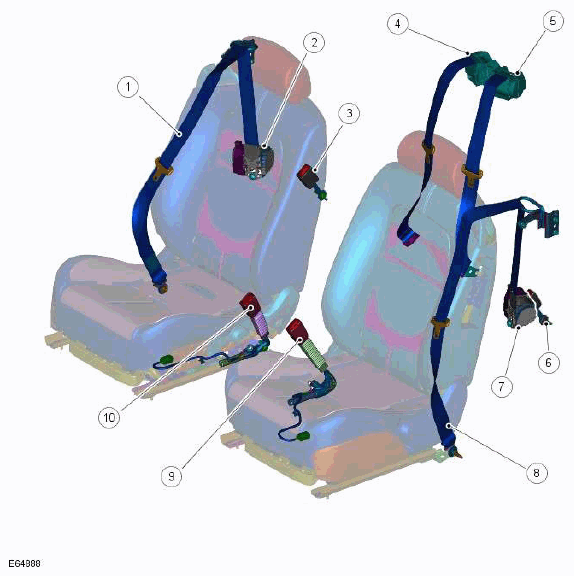

| ITEM | DESCRIPTION |
|---|---|
| 1 | RH (right hand) front safety belt |
| 2 | RH front safety belt retractor |
| 3 | RH rear safety belt buckle |
| 4 | RH rear safety belt retractor |
| 5 | LH (left hand) rear safety belt retractor |
| 6 | LH rear safety belt retractor |
| 7 | LH front safety belt retractor |
| 8 | LH front safety belt |
| 9 | LH front safety belt buckle |
| 10 | RH front safety belt buckle |
