Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Protect the surrounding trim from damage when changing the component.

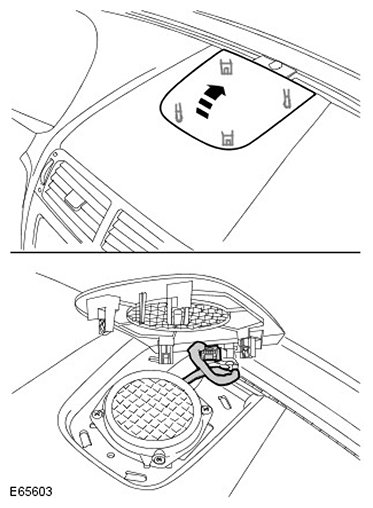

    G11545297

    Remove the center speaker grille.

    • Carefully release the 4 clips.
    • Disconnect the electrical connector.

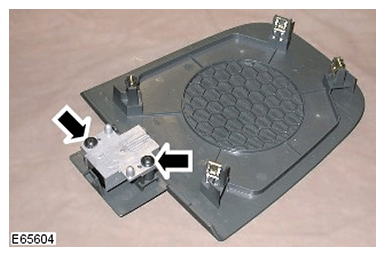

  2. G11545298

    Remove the sunload sensor.

    • Remove the 2 screws.
