Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel, lower trim panel.

    For additional information, refer to: Instrument Panel Lower Trim Panel (Removal and Installation).

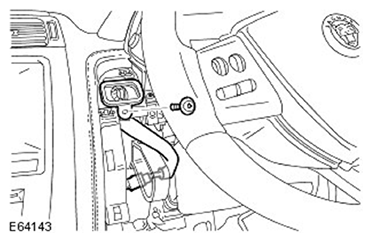

  2. G11545294

    Remove the in-vehicle temperature sensor.

    • Remove the Torx screw.
    • Disconnect the electrical connector.
