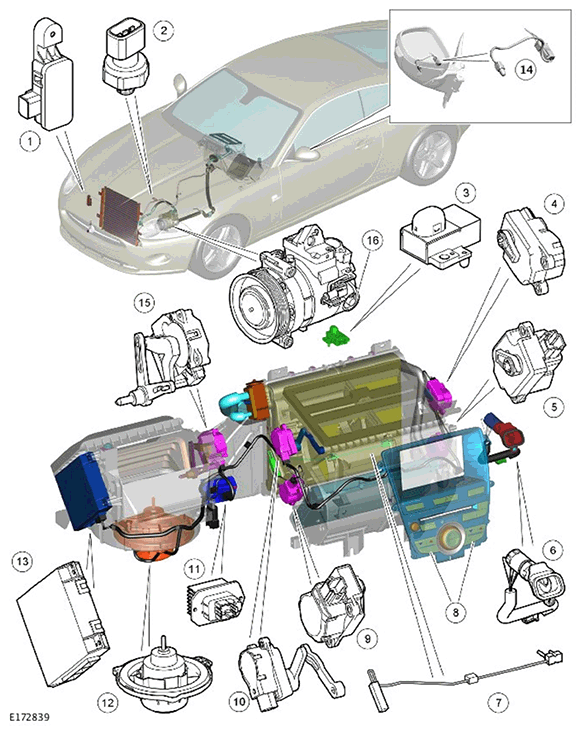

Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pollution sensor (if fitted) |
| 2 | Refrigerant pressure sensor |
| 3 | Sunload/Light sensor |
| 4 | Windshield distribution (defrost) stepper motor |
| 5 | Right-Hand (RH) temperature blend stepper motor |
| 6 | Cabin humidity and temperature sensor |
| 7 | Evaporator temperature sensor |
| 8 | Control switches |
| 9 | Left-Hand (LH) temperature blend stepper motor |
| 10 | Face/feet distribution stepper motor |
| 11 | Blower motor control module |
| 12 | Blower motor |
| 13 | Automatic Temperature Control (ATC) module |
| 14 | Ambient air temperature sensor |
| 15 | Air intake servo motor |
| 16 | Air Conditioning (A/C) compressor solenoid valve |
