Cabin Humidity And Temperature Sensor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

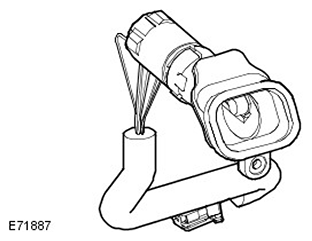

The cabin humidity and temperature sensor is installed behind a grill on the drivers side of the instrument panel. The temperature inside the cabin is measured by a NTC thermistor. A motor within the sensor assembly draws cabin air in through the grill and over the thermistor. The motor is provided a battery voltage feed by a relay located within the CJB (central junction box).

Humidity inside the cabin is measured by a sensor element made up of film capacitors on different substrates. The dielectric is a polymer which absorbs or releases water proportional to the relative humidity of the air being drawn through the sensor and thus changes the capacitance of the capacitor. For protection, the sensor element is contained in a nylon mesh cover.

Humidity within the cabin is controlled by raising and lowering the evaporator temperature. An increase in evaporator temperature increases the moisture content in the air entering the cabin. Lowering the evaporator temperature reduces the moisture content in the air entering the cabin.
