Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: BATTERY DISCONNECT AND CONNECT

  2. Remove the instrument panel.

    For additional information, refer to: Instrument Panel (Removal and Installation).

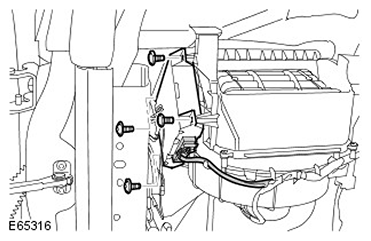

  3. G11545299

    Remove the A/C control module.

    • Remove the 4 Torx screws.
    • Disconnect the electrical connector.
