Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: BATTERY, MOUNTING AND CABLES -- XK/X150 (Specifications).

  2. Make the SRS system safe.

    For additional information, refer to: AIRBAG DISPOSAL  (Supplemental Restraint System (SRS) Depowering and Repowering, General Procedures).

  3. Remove the instrument panel.

    For additional information, refer to: Instrument Panel (Removal and Installation).

  4. Remove the navigation system display module.

    For additional information, refer to: Navigation System Display Module (Removal and Installation).

  5. NOTE: The Torx screws may not be fitted.

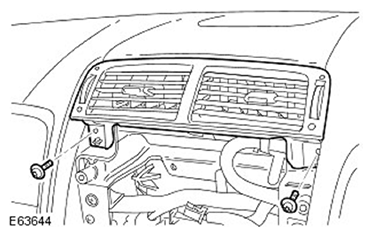

    G11545123

    Remove the center register.

    • Remove the 2 Torx screws.
    • Carefully release the component.
  6. G11545125

    Remove the instument panel driver's side reinforcement trim panel.

    • Carefully release the 4 clips.
  7. CAUTION: Care must be taken to avoid damage to the mating surfaces.

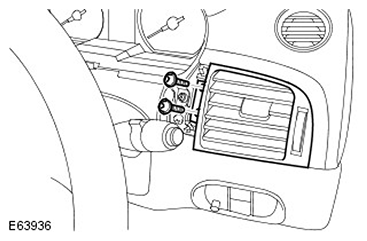

    G11545126

    Remove the driver side register trim panel.

    • Remove the 2 Torx screws.

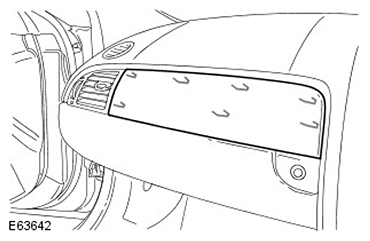

  8. G11545128

    Remove the instrument panel passenger side reinforcement trim panel.

    • Carefully release the 7 clips.

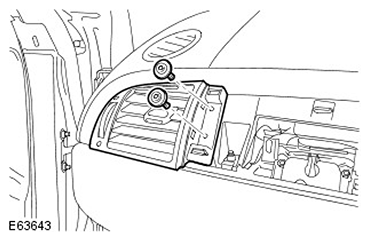

  9. G11545129

    Remove the passenger side register.

    • Remove the 2 Torx screws.
    • Carefully release the component.
  10. G11524427

    Release the glove compartment.

    • Remove the 5 Torx screws.
    • Release the 2 clips.
  11. G11524428

    Remove the glove compartment.

    • Disconnect the 2 electrical connectors.
    • Release the glove compartment lamp assembly.
  12. CAUTION: Care must be taken to avoid damage to the mating surfaces.
    G11524445

    Carefully release and remove the rheostat switch assembly.

    • Disconnect the electrical connector.
  13. G11524447

    Release the MOST diagnostic port.

    • Carefully release the clip.
  14. G11524448

    Remove the instrument panel, lower trim panel.

    • Remove the 3 Torx bolts.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
    • Release the vehicle diagnostic port.
  15. CAUTION: Protect the surrounding trim from damage when changing the component.
    G11545305

    Remove the instrument cluster surround.

    • Remove the 3 screws.
  16. G11545306

    Remove the instrument cluster.

    • Raise the steering column finisher for access to the lower screws.
    • Remove the 4 screws.
    • Disconnect the 2 electrical connectors.
  17. G11545294

    Remove the in-vehicle temperature sensor.

    • Remove the Torx screw.
    • Disconnect the electrical connector.
  18. CAUTION: Protect the surrounding trim from damage when changing the component.

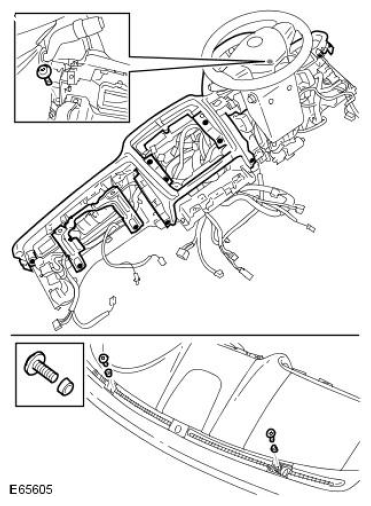

    G11549388

    Release the instrument panel upper trim.

    • Remove the 11 Torx screws.
    • Collect the compression limiters.
    • Release the glove box support bracket.
    • Remove the 2 Torx screws.
    • With assistance, separate the components.
  19. Disconnect the passenger air bag ground cable.
    • Remove the Torx bolt.

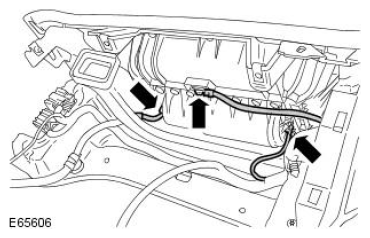

  20. G11549389

    Disconnect the passenger air bag module 2 electrical connectors.

    • Carefully release the clips.

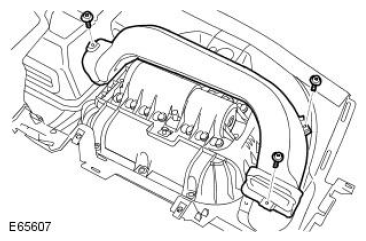

  21. G11549390

    Remove the heater duct.

    • Remove the 3 Torx screws.

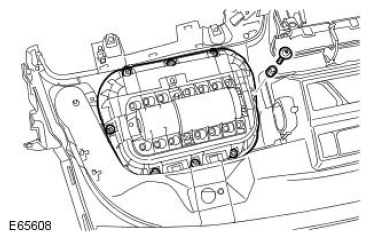

G11549391

Remove the passenger air bag module.
