Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

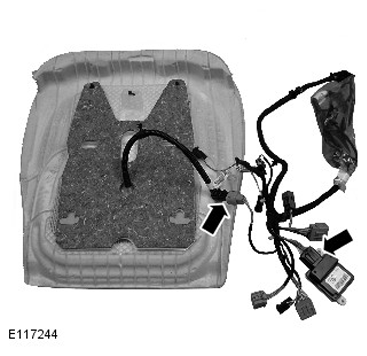

  1. CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
    G11289094

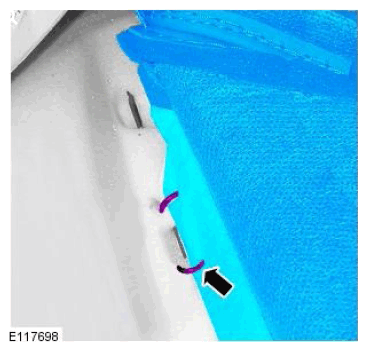

  2. NOTE:
    • Make sure that new hog rings are installed.
    • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G11549354

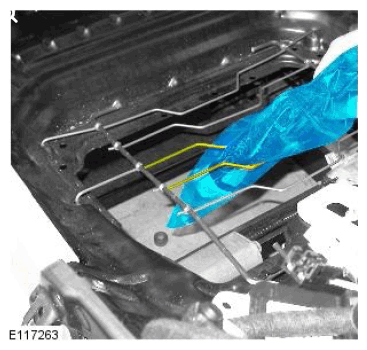

  3. G11549355

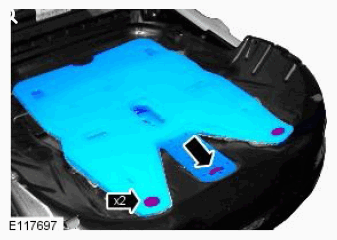

  4. G11549356

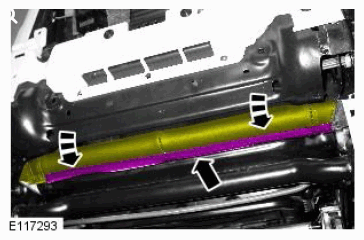

  5. G11549357

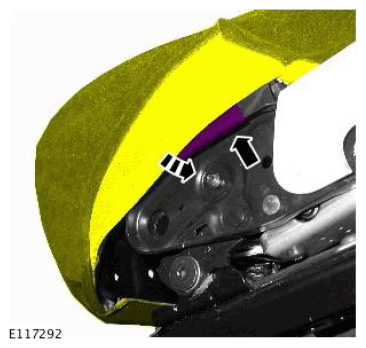

  6. G11549358

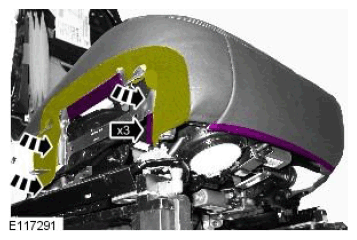

  7. G11549359

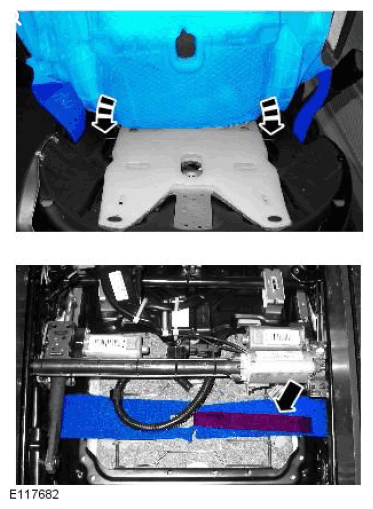

  8. NOTE: Take note of the routing.
    G11549360
  9. NOTE: Make sure that the harness is routed to the position noted on removal.
    G11549344
  10. CAUTION: Take extra care not to damage the clips.
    G11549345
  11. G11549346
  12. NOTE: Make sure that the harness is routed to the position noted on removal.
    G11549351

    Torque Specification: 4 Nm

  13. G11549338

    Torque Specification: 9 Nm

  14. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.
    NOTE: Make sure that the harness is routed to the position noted on removal.
    G11549349
  15. G11549350
  16. G11549348

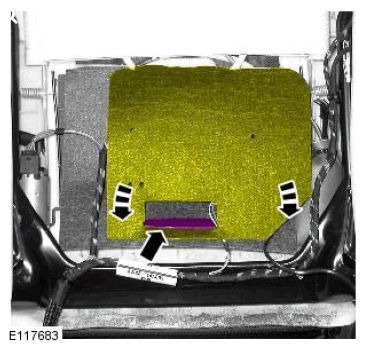

  17. G11549369
  18. NOTE:
    • An audible click is heard when the clips are fully latched.
    • Make sure the electrical connector is securely connected.
    G11549337
  19. G11549336

    Torque Specification: 1.3 Nm

  20. Refer to: Front Seat Backrest Cover (Removal and Installation).
  21. Refer to: Battery Disconnect and Connect (General Procedures).
