Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Specifications (Battery, Mounting and Cables).

  2. Make the SRS system safe.

    For additional information, refer to: AIRBAG DISPOSAL  (Supplemental Restraint System (SRS) Depowering and Repowering, General Procedures).

  3. Remove the front seat.

    For additional information, refer to: FRONT ROW SEAT (Removal and Installation).

  4. Release the front seat cushion outer trim panel.
    • Remove the 2 Torx screws.

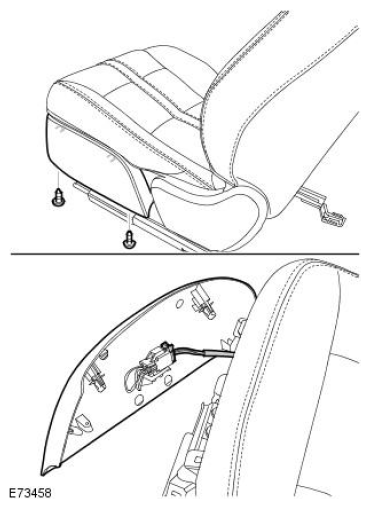

  5. G11524289

    Remove the front seat cushion outer trim panel.

    • Release the 2 clips.
    • Disconnect the electrical connector.
  6. G11524261

    Release the front seat backrest cover lower tension straps.

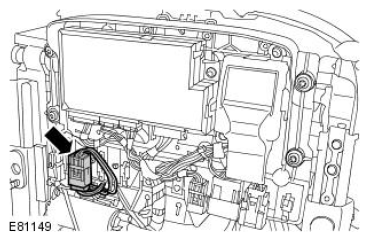

  7. G11549325

    Release the pre-tensioner harness and disconnect the electrical connector.

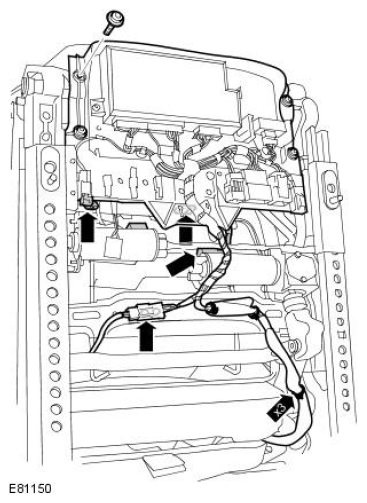

  8. G11549326

    Release the seat module bracket.

    • Disconnect the 4 electrical connectors.
    • Release the 3 wiring harness clips.
    • Remove and discard the cable tie.
    • Remove the 4 Torx bolts.

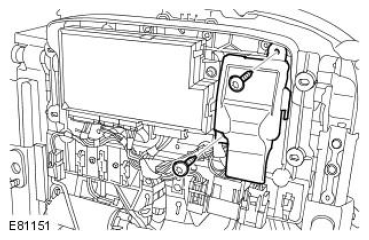

  9. G11549327

    Release the occupant classification module from the seat module bracket.

    • Remove the 2 Torx screws.

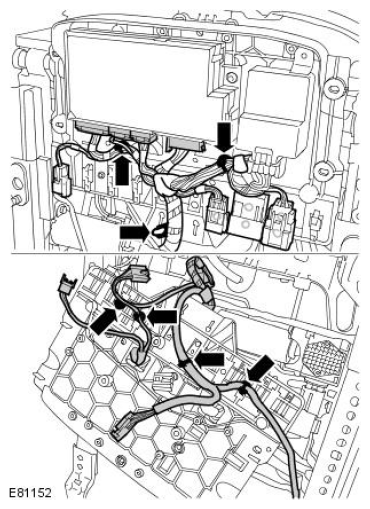

  10. G11549328

    Release the harness assembly from the seat module bracket.

    • Release the 7 wiring harness clips.
    • Release the 4 electrical connectors.
    • Disconnect the 4 electrical connectors.
  11. G11524262

    Release the 9 front seat backrest cover rear panel retaining clips.

    • Release from the backrest cover.
    • Release from the seat frame.

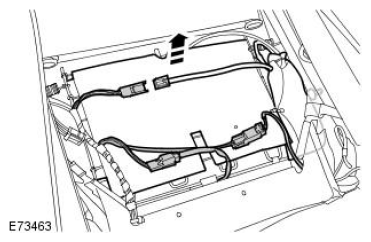

  12. G11524297

    Release the harness from the lumbar assembly.

    • Disconnect the 3 electrical connectors.
    • Release the 3 electrical connectors.

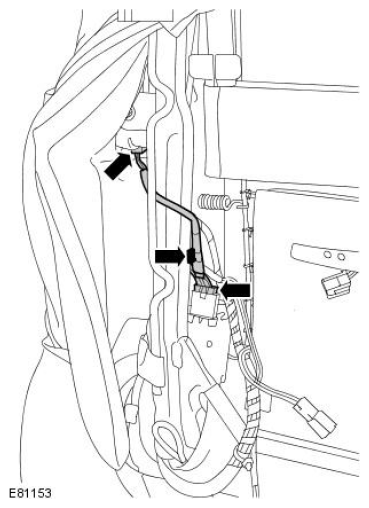

  13. G11549331

    Release the harness from the seat airbag and backrest frame.

    • Disconnect the electrical connector.
    • Release the wiring harness clip.

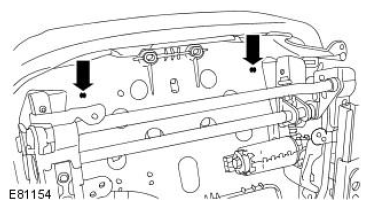

  14. G11549332

    Release the occupant classification assembly from the seat cushion frame.

    • Release the 2 clips.
  15. NOTE:
    • Seat harness is part of the occupant classification sensor assembly.
    • Note the routing of the seat harness.

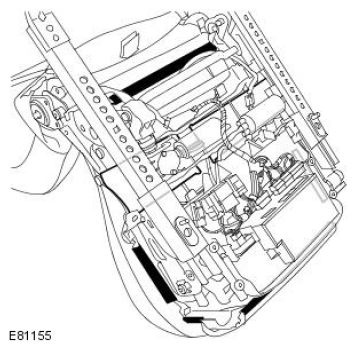

    G11549333

    Remove the passenger seat cushion and occupant classification sensor assembly.

    • Release and disconnect the electrical connector.
    • Release the Velcro strap.
    • Release the 5 clips.

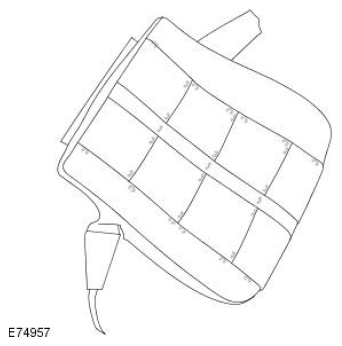

  16. G11524293

    Remove the front seat cushion cover.

    • Remove the 27 hog rings.
