Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The LH front impact severity sensor is illustrated, removal of the RH sensor is a similar procedure.
  1. Open the hood.

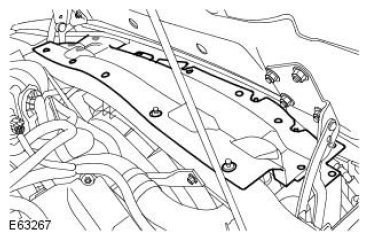

  2. G11549317

    Remove the fan cowl.

    • Remove the 15 clips.

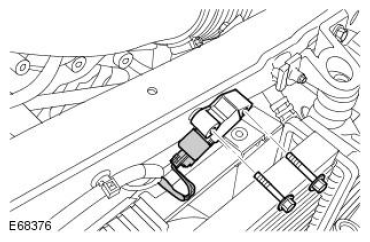

G11549318

Remove the front impact severity sensor.
