Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover and disconnect the battery ground cable.
For additional information, refer to: BATTERY, MOUNTING AND CABLES -- XK/X150 (Specifications).
Make the SRS system safe.
For additional information, refer to: AIRBAG DISPOSAL (Supplemental Restraint System (SRS) Depowering and Repowering, General Procedures).

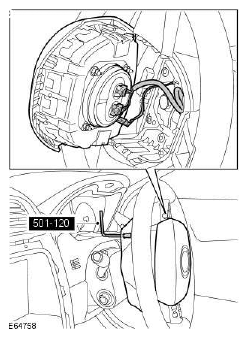

Using the special tool remove the driver air bag module.

Rotate the steering wheel for access to slots.
Carefully release the 2 clips.
Disconnect the 3 electrical connectors.
