Side Air Bag Module
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

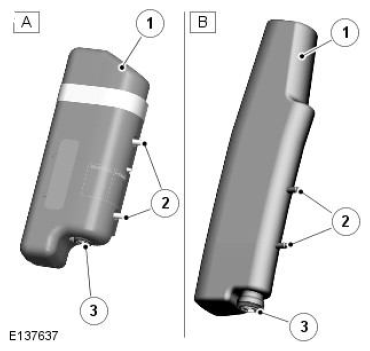

| ITEM | DESCRIPTION |
|---|---|
| A | Side air bag module - sport and luxury seat version |
| B | Side air bag module - performance seat version |
| 1 | Module cover |
| 2 | Mounting studs |
| 3 | Inflator electrical connector |
The side air bag module is mounted in the outboard bolster of each front seat and uses compressed gas to inflate. It provides protection for the thorax (the part of the trunk between the neck and the abdomen) and the head. In an air bag deployment situation, it deploys through the stitch seam in the side bolster. To ensure the air bag always emerges at the same point, a chute is attached to the inside of the trim cover and wrapped around the air bag module.
