Restraints Control Module: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

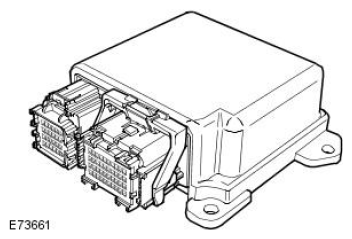

The RCM is installed on the top of the transmission tunnel, in line with the B pillars, and controls operation of the SRS. The main functions of the RCM include:
- Crash detection and recording.
- Air bag and pretensioner firing.
- Self test and system monitoring, with status indication via the air bag warning indicator and non volatile storage of fault information.
The RCM determines which elements of the SRS are to be deployed by using two internal areas:
