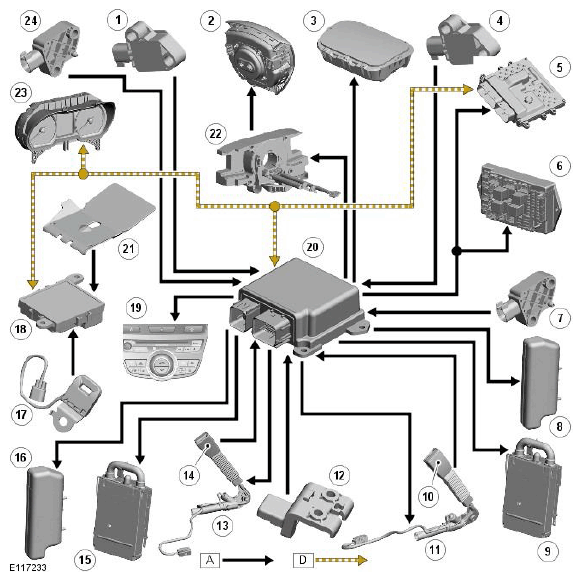

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connection; D = High speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front impact sensor |
| 2 | Driver air bag |
| 3 | Passenger air bag |
| 4 | Front impact sensor |
| 5 | ECM (engine control module) |
| 6 | AJB (auxiliary junction box) |
| 7 | Side impact sensor |
| 8 | Side air bag (sport and luxury seat version shown) |
| 9 | Roll over protection hoop |
| 10 | Safety belt sensor |
| 11 | Safety belt pretensioner |
| 12 | Seat position sensor |
| 13 | Safety belt pretensioner |
| 14 | Safety belt sensor |
| 15 | Roll over protection hoop |
| 16 | Side air bag (sport and luxury seat version shown) |
| 17 | Safety belt tension sensor (Canada and USA only) |
| 18 | Occupancy sensor module |
| 19 | Integrated control module |
| 20 | RCM |
| 21 | Occupancy sensor |
| 22 | Clockspring |
| 23 | Instrument cluster |
| 24 | Side impact sensor |
