Component Location - Sheet 1 Of 3

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RHD (right-hand drive) installation shown, LHD (left-hand drive) installation similar.

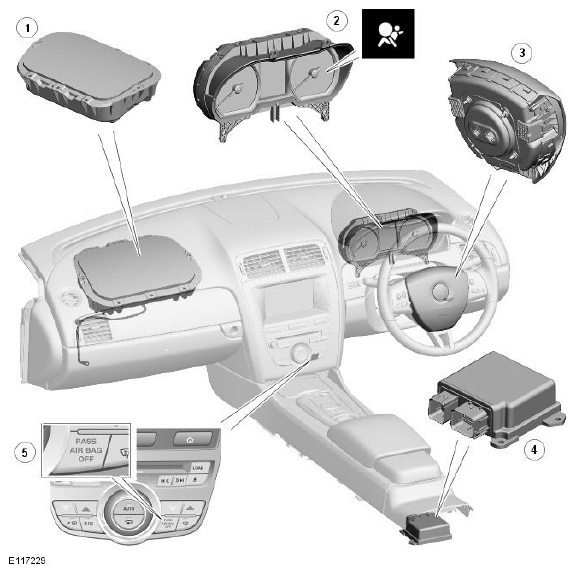

G11549300
ITEM DESCRIPTION
1 Passenger air bag
2 Air bag warning indicator
3 Driver air bag
4 RCM (restraints control module)
5 PAD (passenger air bag deactivation) indicator
