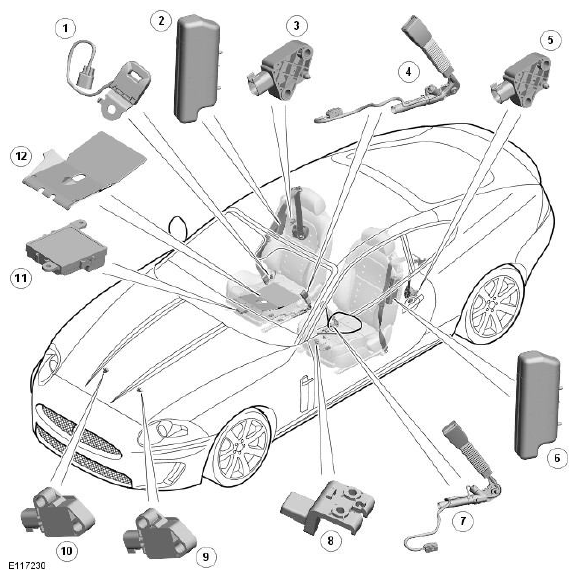

Component Location (Coupe) - Sheet 2 Of 3
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LHD installation shown, RHD installation similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Safety belt tension sensor |
| 2 | RH (right hand) side air bag (sport and luxury seat version shown) |
| 3 | Side impact sensor |
| 4 | RH safety belt pretensioner |
| 5 | Side impact sensor |
| 6 | LH (left hand) side air bag (sport and luxury seat version shown) |
| 7 | LH safety belt pretensioner |
| 8 | Seat position sensor |
| 9 | Front impact sensor |
| 10 | Front impact sensor |
| 11 | Occupancy sensor module |
| 12 | Occupancy sensor |
