Air Bag Warning Indicator

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

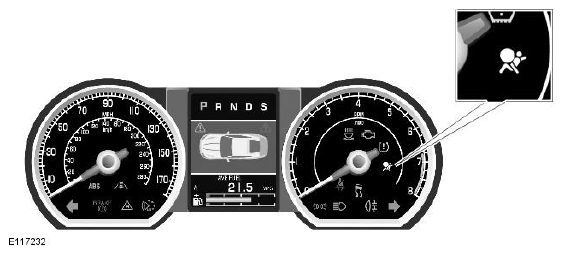

G11549311

The air bag warning indicator consists of an amber LED (light emitting diode) behind a graphic in the tachometer of the instrument cluster.

Operation of the air bag warning indicator is controlled by a high speed CAN bus message from the RCM to the instrument cluster. The RCM illuminates the air bag warning indicator if a fault is detected, and for approximately 6 seconds during the indicator check at the beginning of each ignition cycle.
