Front Seat Heating

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

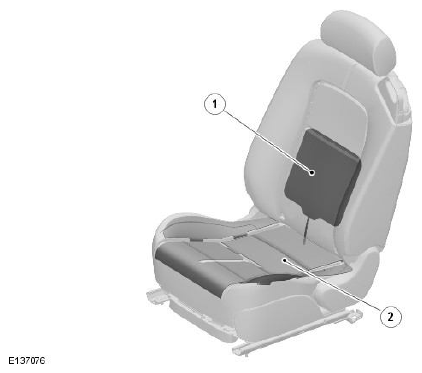

G11524225
ITEM DESCRIPTION
1 Seat backrest heater
2 Seat cushion heater

Seat heating is provided by two heater mats in each seat, one in the seat cushion and one in the seat backrest. Operation of the heater mats is controlled by the ATC (automatic temperature control) module.

The heater mats in each seat contain three heater elements, two in the cushion heater mat and one in the backrest heater mat, which are wired in series. The ATC module monitors seat temperature using a temperature sensor in the seat cushion heater mat.
