Front Seat Control Components
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Luxury seats shown.

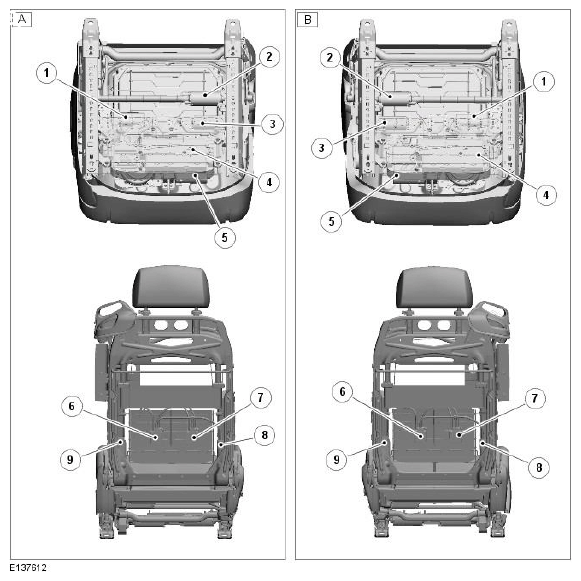

| ITEM | DESCRIPTION |
|---|---|
| A | Passenger seat |
| B | Driver seat |
| 1 | Height adjustment motor |
| 2 | Fore and aft adjustment motor |
| 3 | Cushion tilt motor |
| 4 | Seat control module |
| 5 | Cushion extension motor |
| 6 | Bolster solenoids |
| 7 | Lumbar solenoids |
| 8 | Air pump |
| 9 | Backrest adjustment motor |
Seat position is monitored by the related seat module using inputs from Hall sensors in the seat adjustment motors. This prevents the seat from being adjusted to a position that will contact the surrounding interior trim or a rear seat passenger causing injury (clash avoidance).
Seat memory is standard on both drivers and passenger seats. Each seat memory can be configured for three positions, which are set using the seat memory switches and stored in the individual seat module.
Selections on the seat adjustment and memory switches are transmitted on a LIN (local interconnect network) bus to the related seat control module.
NOTE:

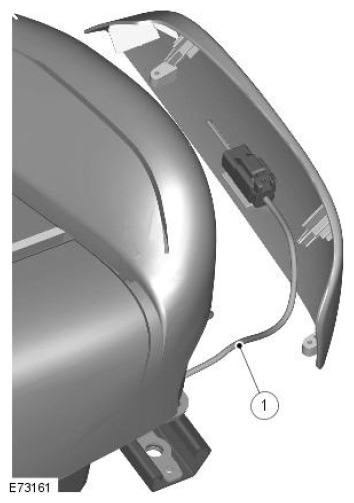

In the event of a control module failure a fly lead behind the seat valance can be used to connect a power source directly to the seat slide motor. This enables the seat to be moved to gain access to the front and rear seat fixings. The seat can then be removed from the vehicle in order to access the control module.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fly lead |
