Front Seat Back Tilt
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

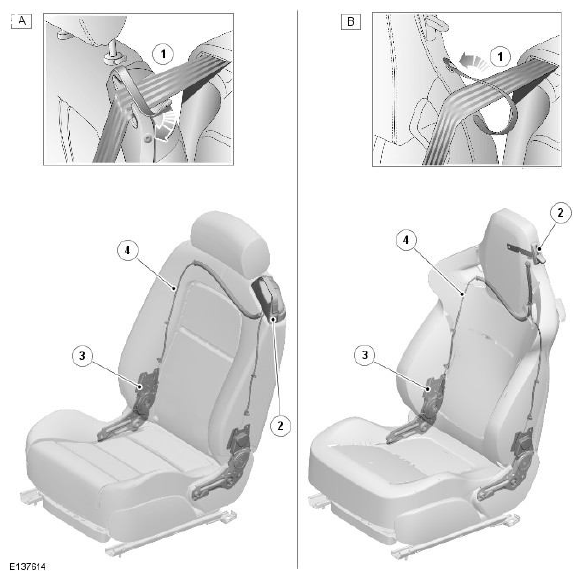

| ITEM | DESCRIPTION |
|---|---|
| A | Sport and luxury seats |
| B | Performance seats |
| 1 | Safety belt guide |
| 2 | Release lever |
| 3 | Recliner assembly |
| 4 | Release cable |
The front seats tilt forward to allow access to the rear seats. To tilt the seat forward, remove the safety belt from the belt guide. Lift the lever and push the seat back forwards. The seat back will latch when returned to the normal position. Ensure that the safety belt is returned to the belt guide.
