Seat Heating

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A = Hardwired; N = Medium speed CAN bus; P = MOST ring.

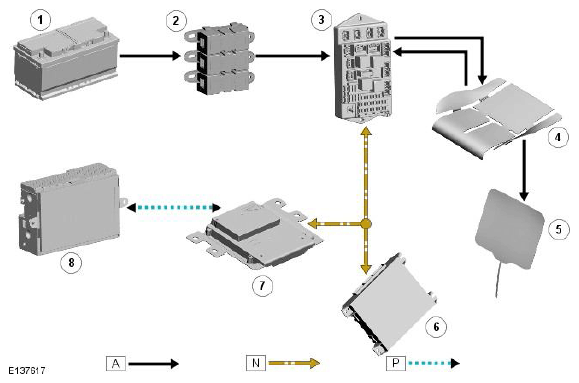

G11524231
ITEM DESCRIPTION
1 Battery
2 BJB (175 A megafuse)
3 CJB
4 Cushion heater mat
5 Backrest heater mat
6 ATC module
7 Information and entertainment module
8 TSD (touch screen display)
