Adjustment 16-way Seats
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

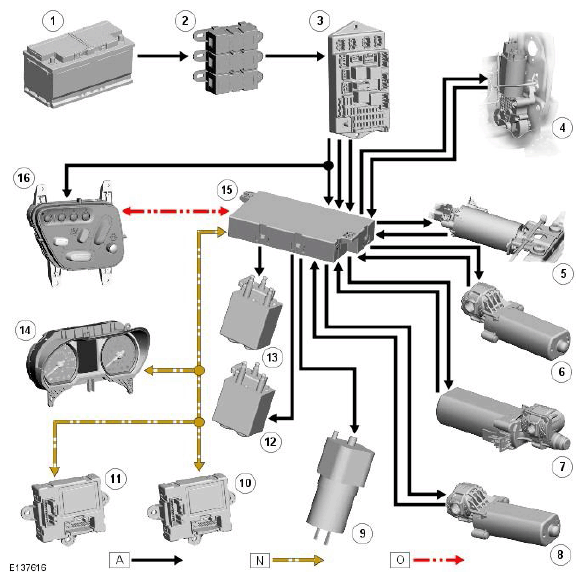

NOTE:
A = Hardwired; N = Medium speed CAN bus; O = LIN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (175 A megafuse) |
| 3 | CJB |
| 4 | Recline adjustment motor |
| 5 | Fore/Aft adjustment motor |
| 6 | Height adjustment motor |
| 7 | Cushion tilt motor |
| 8 | Cushion extension motor |
| 9 | Air pump |
| 10 | Driver door module |
| 11 | Passenger door module |
| 12 | Lumbar solenoids |
| 13 | Backrest bolster solenoids |
| 14 | Instrument cluster |
| 15 | Seat control module |
| 16 | Seat adjustment/memory switchpack |
