Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

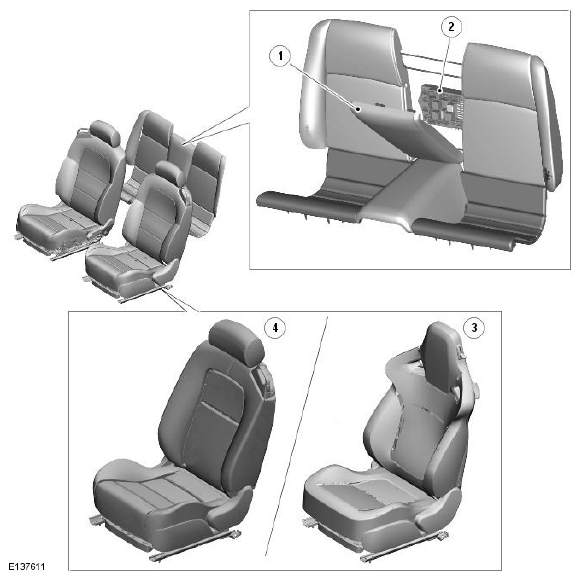

G11524220
ITEM DESCRIPTION
1 Rear seat removable center panel
2 Auxiliary junction box
3 Performance front seat
4 Sport and luxury front seat
