Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH rear seat cushion.

    For additional information, refer to: Rear Seat Cushion  (Removal and Installation).

  2. Repeat the above procedure for the RH seat cushion.
  3. Remove the auxiliary junction box access cover.
    • Release the clip.

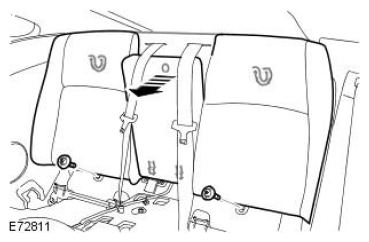

  4. G11524308

    Remove the rear seat backrest.

    • Remove the 2 Torx bolts.
    • Release from the 2 retainers.
