Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: SPECIFICATIONS .

  2. Make the SRS system safe.

    For additional information, refer to: GENERAL PROCEDURES .

  3. Release the front seat cushion outer trim panel.
    • Remove the 2 Torx screws.
  4. G11524289

    Remove the front seat cushion outer trim panel.

    • Release the 2 clips.
    • Disconnect the electrical connector.
  5. G11524290

    Remove the front seat hinge cover.

    • Remove the 2 Torx screws.
    • Remove the hinge cover retainer.
  6. Remove the front seat backrest cover.

    For additional information, refer to: Front Seat Backrest Cover  (Removal and Installation).

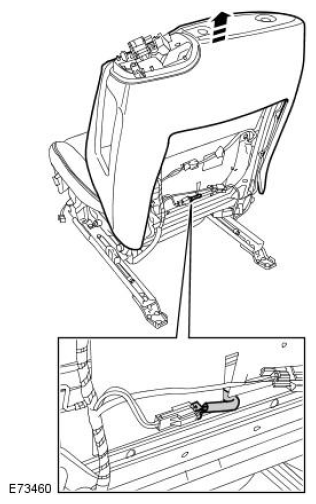

  7. G11524301

    Remove the front seat backrest pad.

    • Disconnect the electrical connector.
  8. G11524297

    Release the front seat lumbar assembly.

    • Release the 3 electrical connectors.
    • Remove the clip.
    • Disconnect the electrical connector.
  9. Remove the front seat lumbar assembly.

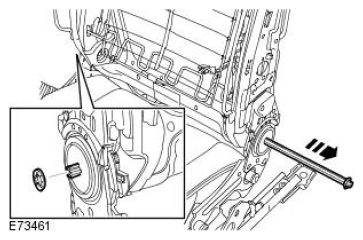

  10. G11524303

    Release the front seat recliner motor.

    • Remove the front seat backrest shaft clip.
    • Remove the front seat backrest shaft.

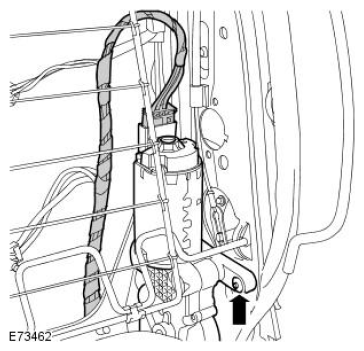

  11. G11524304

Remove the front seat recliner motor.
