Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Front Seat Backrest Cover  (Removal and Installation).

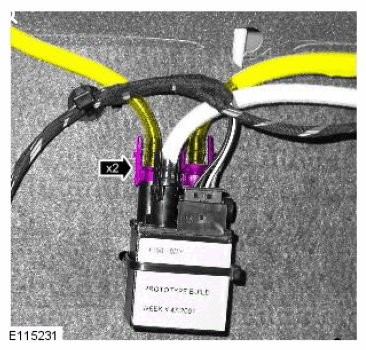

  3. G11524283

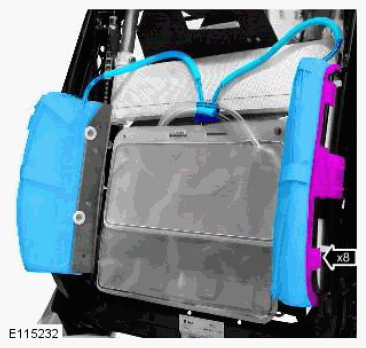

  4. CAUTION: Make sure that the clips are correctly located.
    NOTE: The procedure must be carried out on both sides of the seat.
    G11524284
