Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: refer to: SPECIFICATIONS .

  2. Make the SRS system safe.

    For additional information, refer to: GENERAL PROCEDURES .

  3. Remove the front seat.

    For additional information, refer to: FRONT ROW SEAT (G532581)  (Removal and Installation).

  4. G11524261

    Release the front seat backrest cover lower tension straps.

    • Release from the seat frame.
  5. G11524262

    Release the 9 front seat backrest cover rear panel retaining clips.

    • Release from the backrest cover.
    • Release from the seat frame.
  6. Release the 5 front seat backrest cover lower retaining clips.
    • Release from the seat frame.
  7. G11524263

    Release the front seat backrest cover central tension straps.

    • Release from the seat frame.

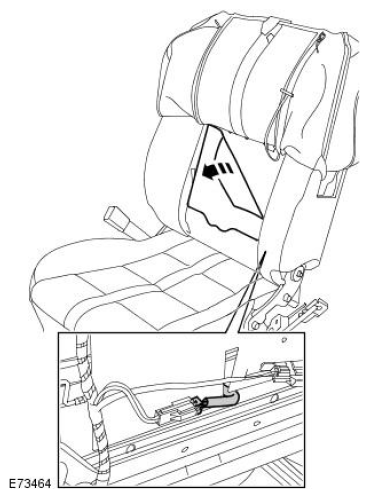

  8. G11524315

    Remove the front seat backrest heater mat.

    • Disconnect the electrical connector.
