Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

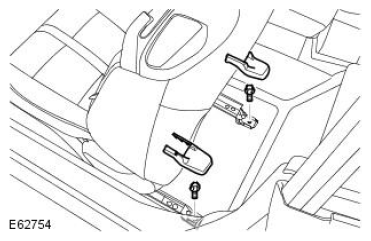

Release the front seat.
- Position the front seat fully forwards.
- Remove the bolt covers.
- Remove and discard the 2 rear bolts.
- Position the front seat fully rearwards.
- Remove the cover and disconnect the battery ground cable.
For additional information, refer to: BATTERY, MOUNTING AND CABLES -- XK/X150 (Specifications).

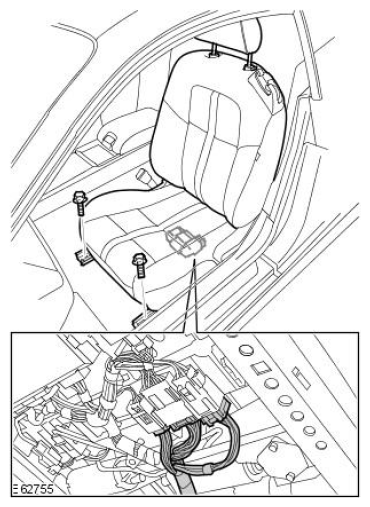

With assistance, remove the front seat.
- Remove and discard the front 2 Torx bolts.
- Disconnect the 3 electrical connectors.
