Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.
  2. Make the SRS system safe.

    For additional information, refer to: GENERAL PROCEDURES .

  3. Remove the front seat.

    For additional information, refer to: FRONT ROW SEAT (G532581)  (Removal and Installation).

  4. Release the front seat cushion outer trim panel.
    • Remove the 2 Torx screws.
  5. G11524289

    Remove the front seat cushion outer trim panel.

    • Release the 2 clips.
    • Disconnect the electrical connector.

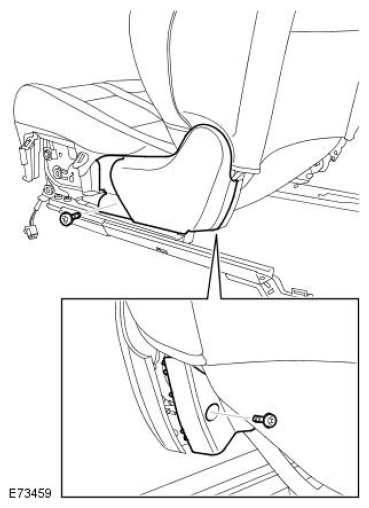

  6. G11524290

    Remove the front seat hinge covers.

    • Remove the 2 Torx screws.
    • Remove the hinge cover retainers.
  7. G11524261

    Release the front seat backrest cover lower tension straps.

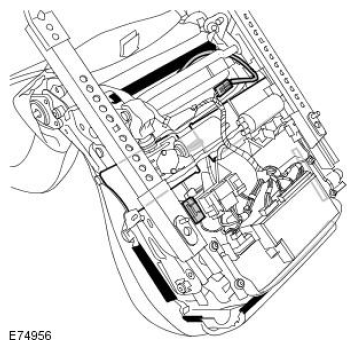

  8. G11524292

    Remove the front seat cushion assembly.

    • Release and disconnect the 2 electrical connectors.
    • Release the Velcro strap.
    • Release the 5 clips.
  9. G11524293

    Remove the front seat cushion cover.

    • Remove the 27 hog rings.
  10. Using WDS, calibrate a new front seat cushion cover.
