Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
- Make the SRS system safe.
For additional information, Refer To: GENERAL PROCEDURES .
- Remove the front seat.
For additional information, Refer To: FRONT ROW SEAT (G532581) (Removal and Installation).

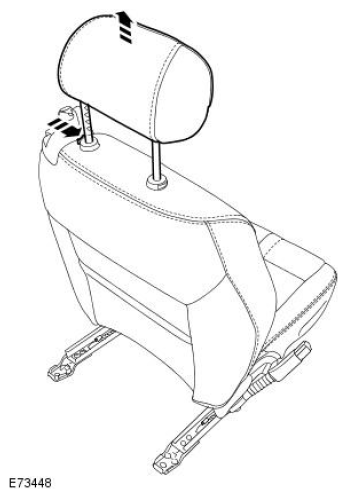

Remove the front seat head restraint.
- Depress the 2 clips.

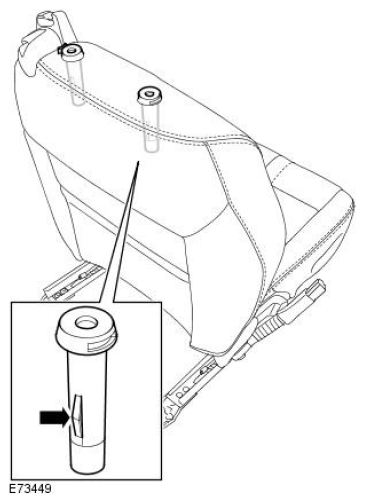

Remove the front seat head restraint guide tubes.
- Release from the seat frame.

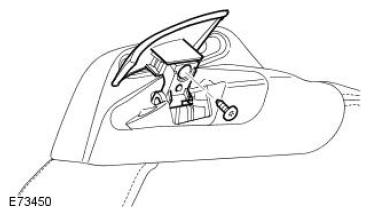

Remove the front seat backrest tilt handle.
- Remove the screw.

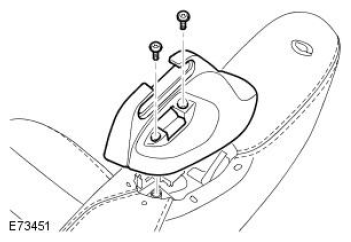

Remove the front seat backrest tilt handle trim panel.
- Remove the 2 Torx screws.
Release the front seat backrest cover lower tension straps.
- Release from the seat frame.
Release the 9 front seat backrest cover rear panel retaining clips.
- Release from the backrest cover.
- Release from the seat frame.
- Release the 5 front seat backrest cover lower retaining clips.
- Release from the seat frame.
Release the front seat backrest cover central tension straps.
- Release from the seat frame.
Remove the side air bag module.
- Remove and discard the 2 nuts.
- Disconnect the electrical connector.
- Release the backrest cover.
Release the front seat backrest cover upper tension straps.
- Release from the seat frame.
- Withdraw from the backrest pad.

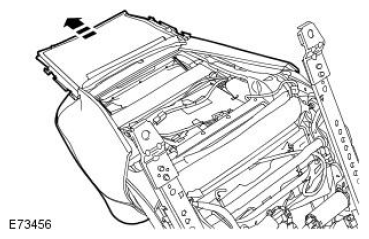

Remove the front seat backrest cover.
- Remove the 16 hog rings.
