Removal And Installation: Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles

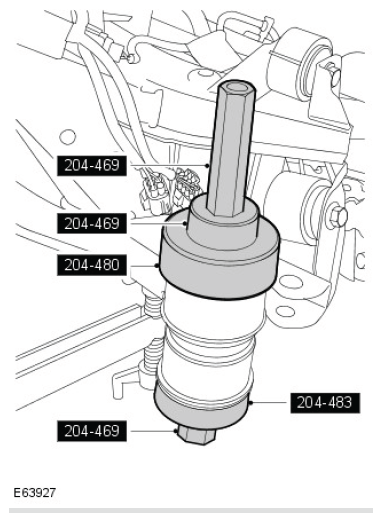

- See Figure
Using the special tools, Install the new front bushings.
Vehicles with 4.2L engine
- Install the rear subframe.
For additional information, refer to: Rear Subframe
Vehicles with 5.0L engine
- Install the rear subframe.
For additional information, refer to: Rear Subframe - 5.0L
All vehicles
- Connect the battery ground cable.
For additional information, refer to: Battery Disconnect and Connect
NOTE:
Align to the position noted on removal.
