Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions
- Raise and support the vehicle.
- Refer to: Wheel and Tire
- Refer to: Battery Disconnect and Connect
- Refer to: Driveshaft - 5.0L

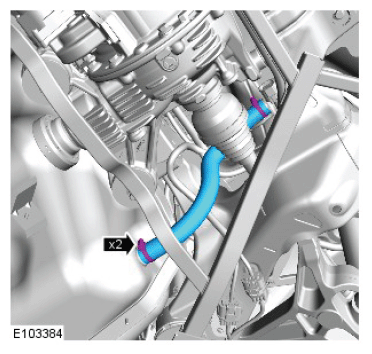

- See Figure
Torque Specification: 10 Nm

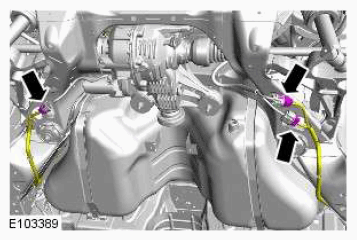

- See Figure

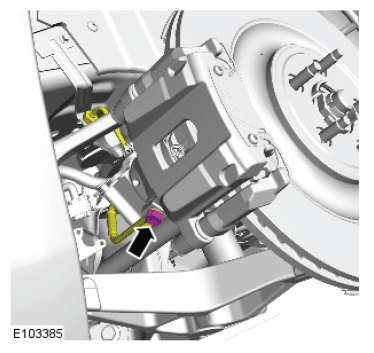

- Using the special tool, press and hold the brake pedal.
- See Figure
Torque Specification: 35 Nm
- See Figure

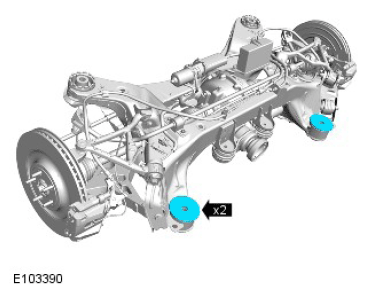

Torque Specifications:
M10 40 Nm
M12 133 Nm

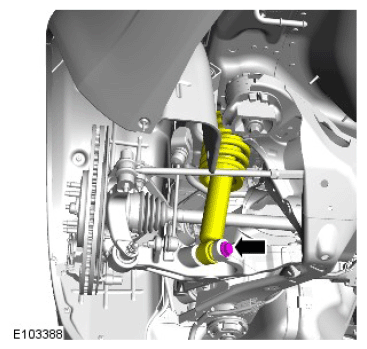

- See Figure
- See Figure
Torque Specification: 133 Nm
- See Figure
- See Figure

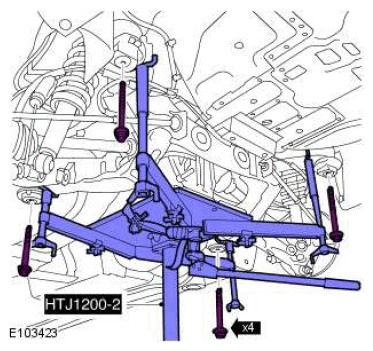

General Equipment: Powertrain Jack
Torque Specifications:
Stage 1: 60 Nm
Stage 2: 240°
- See Figure
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
WARNING:
Be prepared to collect escaping fluids.
NOTE:
The fuel tank has a non-return valve in the fuel filler stub pipe, only the fuel present in the filler hose will be spilt.
WARNING:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
CAUTION:
Make sure that a new sealing washer is installed.
NOTE:
LH illustration shown, RH is similar.
WARNING:
Make sure the axle assembly is supported.
WARNING:
Install the M12 subframe bolts prior to removing axle support.
NOTE:
LH illustration shown, RH is similar.
WARNING:
Make Sure the axle assembly is supported.
CAUTION:
Make sure that new bolts are installed.
