Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to: Radiator Splash Shield
  4. Refer to: Air Deflector
  5. Refer to: Wheel Knuckle
    6. NOTE: LH illustration shown, RH is similar.

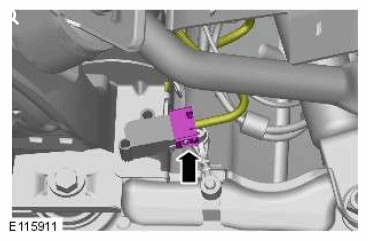

  6. G11549801

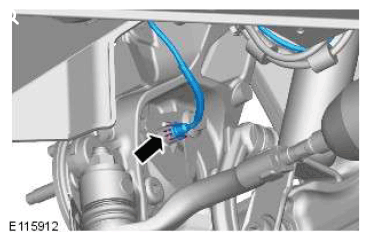

  7. See Figure
    NOTE: LH illustration shown, RH is similar.
    G11549802
  8. See Figure

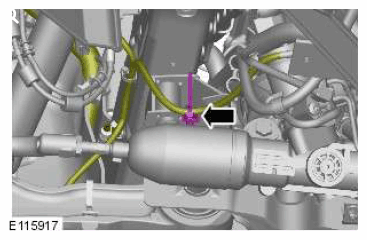

    G11549803
  9. See Figure
    G11285541

    Torque Specification: 45 Nm

  10. Refer to: Steering Gear
  11. See Figure
    G11508008
  12. See Figure

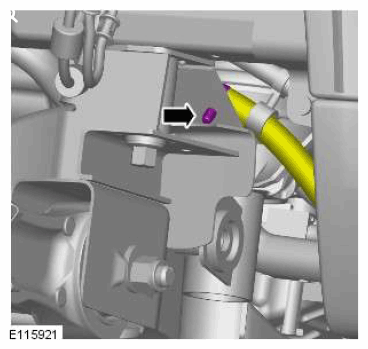

    G11549806

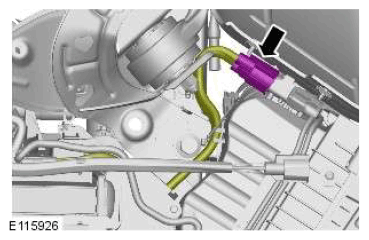

  13. See Figure
    G11549807
  14. See Figure
    G11291687

    Torque Specification: 5 Nm

  15. Lower the vehicle.
  16. See Figure
    G11541355
    17. NOTE: Secure with cable ties.

  17. Secure the radiator assembly.

  18. See Figure

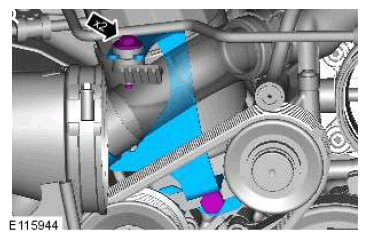

    G11549810
  19. See Figure

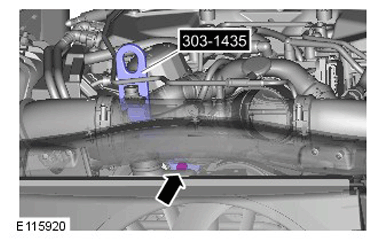

    G11291301

    Special Tool(s):  303-1435

    Torque Specifications:

    Stage 1: 25 Nm

    Stage 2: 90°

    20. WARNING: Make sure to protect the paintwork.
  20. See Figure

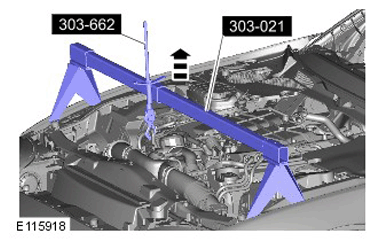

    G11286627

    Support the engine.

    Special Tool(s):  303-021, 303-662

    21. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  21. Raise and support the vehicle.

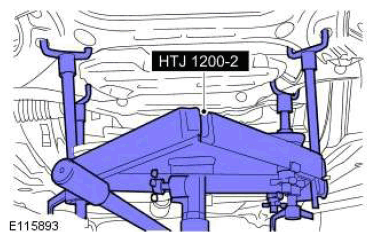

  22. See Figure
    G11549813
    • General Equipment:  Powertrain Jack

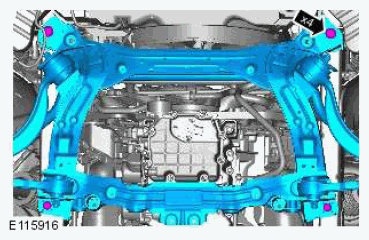

  23. See Figure
    G11549814

    Torque Specifications:

    Front retaining bolts

    Stage 1: 80 Nm

    Stage 2: 360°

    Rear retaining bolts

    Stage 1: 80 Nm

    Stage 2: 270°

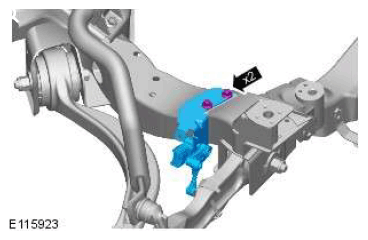

    24. NOTE:
    • LH illustration shown, RH is similar.
    • Do not disassemble further if the component is removed for access only.
  24. See Figure
    G11549815
    25. NOTE: LH illustration shown, RH is similar.
  25. See Figure

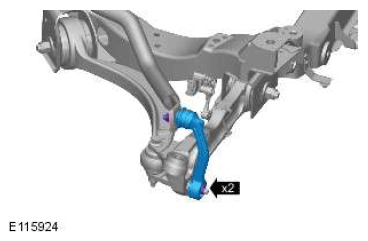

    G11549816

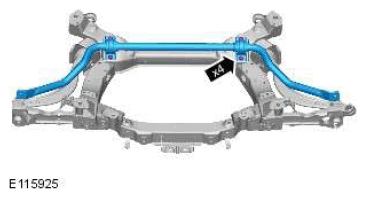

  26. See Figure
    G11549817

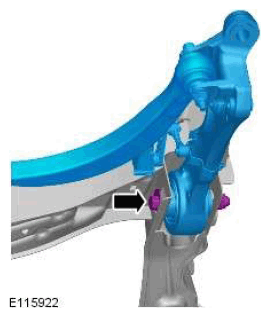

    27. NOTE:
    • LH illustration shown, RH is similar.
    • Note the fitted position of the fasteners.
  27. See Figure
    G11549818

    Torque Specification: 175 Nm

    28. NOTE: LH illustration shown, RH is similar.
  28. See Figure

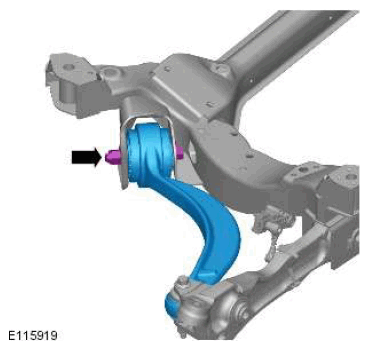

    G11549819

    Torque Specification: 175 Nm
