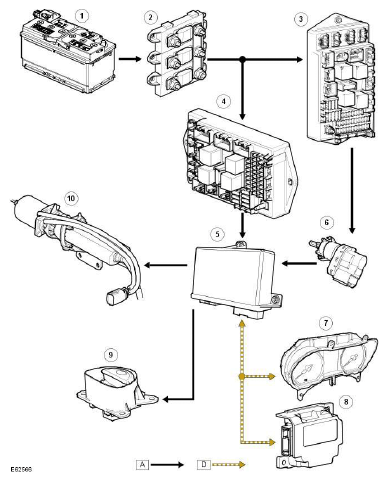

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | CJB (central junction box) (175 A megafuse) |
| 4 | AJB (auxiliary junction box) |
| 5 | Parking brake control module |
| 6 | Stoplamp switch |
| 7 | Instrument cluster |
| 8 | Adaptive speed control module |
| 9 | Parking brake switch |
| 10 | Parking brake actuator |
