Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

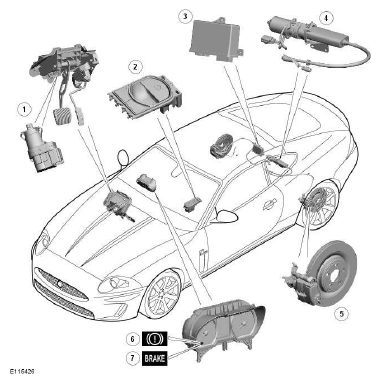

G11511870
ITEM DESCRIPTION
1 Stoplamp switch
2 Parking brake switch
3 Parking brake control module
4 Parking brake actuator
5 Caliper and disc assemblies
6 Brake warning indicator - All except NAS (North American specification) vehicles
7 Brake warning indicator - NAS vehicles
