Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Failure to release the tension and calibrate the electric parking brake during rear parking brake related service procedures, could cause the parking brake to function incorrectly or become inoperative.
  1. Refer to: Parking Brake Cable Tension Release
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  2. Raise and support the vehicle.

  3. Refer to: Rear Subframe

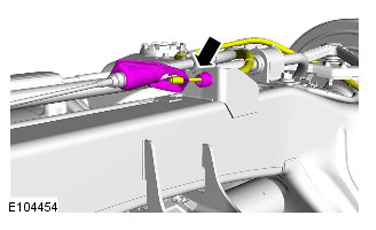

  4. G11284499
    5. NOTE: Note the fitted position.

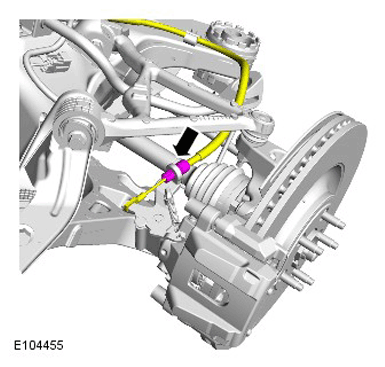

  5. G11284500

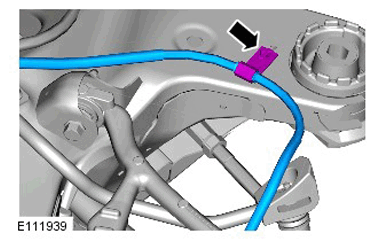

  6. G11284501

Torque Specification: 20 Nm
