Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. Make The Srs System Safe.

    Refer To: Standard Workshop Practices

  2. Refer To: Driver Air Bag Module
  3. Refer To: Upshift Paddle Switch
  4. Refer To: Downshift Paddle Switch

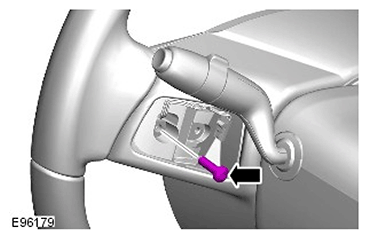

  5. G11545110

    Torque Specification: 3 Nm

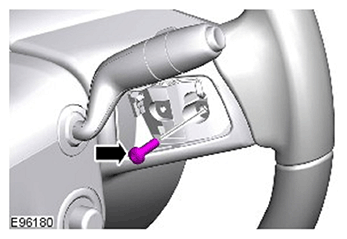

  6. G11545111

    Torque Specification: 3 Nm

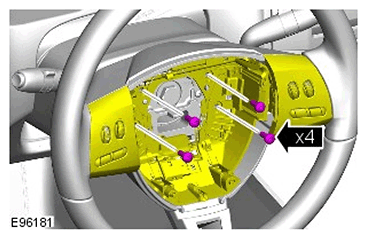

  7. G11545112

    Torque Specification: 6 Nm

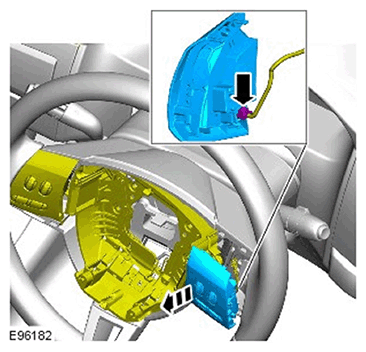

  8. G11545113
