General Procedures: Check

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make Sure To Support The Vehicle With Axle Stands.

  1. Raise And Support The Vehicle.

  2. Refer To: Front Bumper Cover
    3. NOTE: Make Sure That The Vehicle Is Standing On A Level Surface.

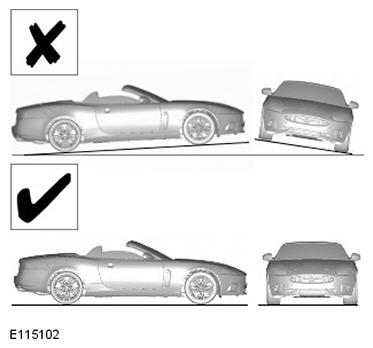

  3. G11545103

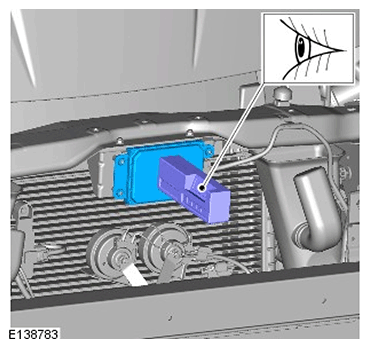

  4. G11545104
    • Using The Special Tool, Check The Adaptive Cruise Control (Acc) Radar Is Level, (+/- 0.5 Degrees).

      Special Tool(S):  501-F007

    Adjustment

    5. NOTE: Make Sure That The Vehicle Is Standing On A Level Surface.

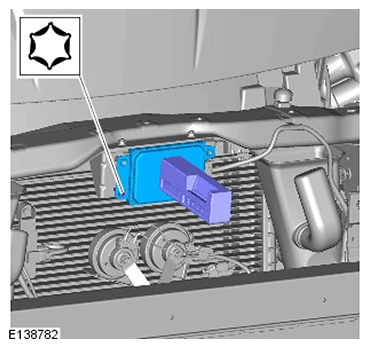

  5. G11545105
    • Adjust Using An External Torx Bit.
    • If The Vertical Alignment Has To Be Adjusted, Then Carry Out The Service Alignment Procedure.
    • Configure The Acc Radar Using The Diagnostic Tool.
    • This Procedure Is Required If:
    • A New Acc Radar Is Installed.
    • The Acc Radar Needed To Be Removed Or Is Misaligned In Its Position Due To Another Repair Operation.
    • From The Diagnostic Tool Menu, Select: Service Alignment Mode.
    • The Follow Indicator Will Now Be Flashing, This Indicates That The Vehicle Is In "Service Alignment" And Now Requires Driving.
    • The Vehicle Speed Must Be Above 30 Mph (48 Kph).
    • Choose A Road With Plenty Of Stationary Objects, Like Street Lights, Road Signs, Or Barriers. Use An Inside Or Outside Lane.
    • Following Vehicles Too Closely Will Obscure The Stationary Targets From The Radar, A Time Gap Of 2 Seconds Is Recommended.
    • A Straight Road Will Produce A Quicker And Better Result, Although The Process Will Still Operate On A Curved Road.
    • The Time That The Acc Radar Takes To Align Will Vary, Depending On The Route, Speed, Number Of Targets, And Individual Radar.
    • When The Flashing Follow Indicator Light Extinguishes, The Acc System Is Now Functional, And A Required Vehicle Speed Can Now Be Set By The Driver And The Acc System Will Operate As Normal.
