Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. Refer To: Battery Disconnect And Connect
    2. WARNING: Make Sure To Support The Vehicle With Axle Stands.

  2. Raise And Support The Vehicle.

  3. Refer To: Front Bumper Cover

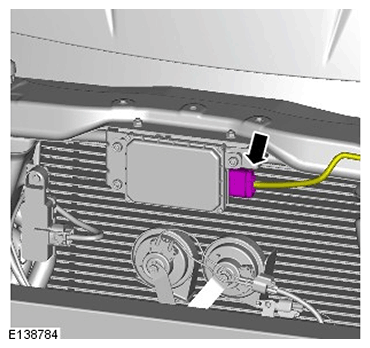

  4. G11545114
    5. NOTE: Make Sure That The Sensor Is Correctly Located To The Bracket. Audible Clicks Will Be Heard To Confirm Connection.

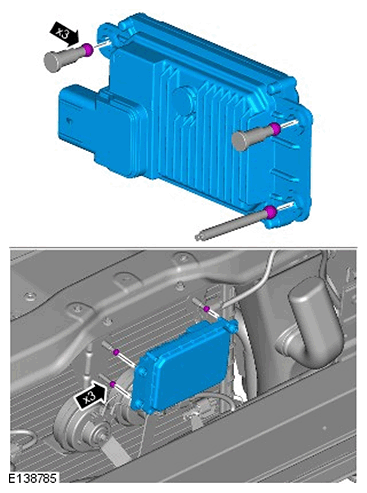

  5. G11545115
    • Use A Suitable Tool To Release The Sensor From The Retaining Bracket.
