Standard Speed Control Switches

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

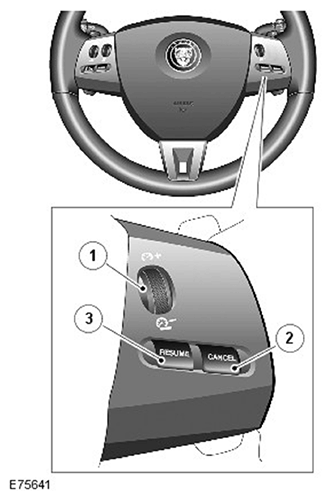

Item	Description
1	Set Speed Adjustment Switch
2	Cancel Switch
3	Resume Switch

There Are Three Standard Speed Control Switches:

Set Speed Adjustment Switch
Cancel
Resume.

The Standard Speed Control Switches Are Located On The Rh (Right-Hand) Side Of The Steering Wheel. The Switches Are Connected Via Fly Leads To The Audio Control Switches. The Standard Speed Control Switches Are Resistive Ladder Type Switches Which Vary The Resistance Of A 5 Volt Signal Sent To Them. The Signal Is Returned Along A Lin (Local Interconnect Network) Bus From The Audio Control Switches To The Cjb (Central Junction Box). The Cjb Routes The Control Signals To The Ecm On The High Speed Can (Controller Area Network) Bus.

Speed Control Is Engaged By Rotating The Speed Adjustment Switch To The + Or - Positions. Once Engaged The Speed Can Be Varied By The Speed Adjustment Switch. Each Movement Of The Speed Adjustment Switch Will Increase Or Decrease The Set Speed In Steps Of 1 Mph (2 Km/H).
