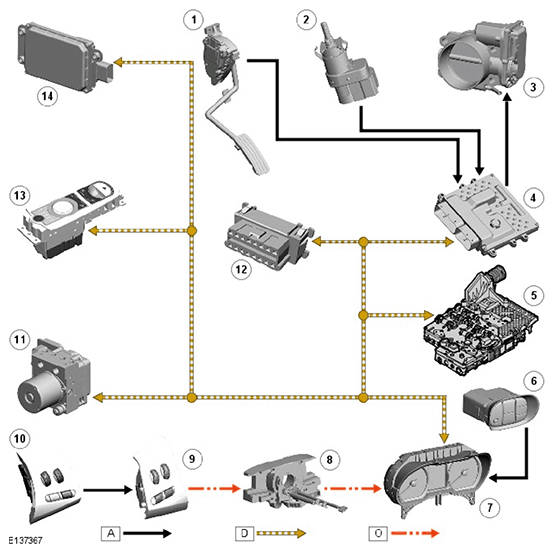

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired Connection; D = High Speed Can Bus; O = Lin Bus.
| Item | Description |
|---|---|
| 1 | App Sensor |
| 2 | Stoplamp Switch |
| 3 | Electric Throttle |
| 4 | Ecm |
| 5 | Tcm (Transmission Control Module) |
| 6 | Forward Alert Switch (Adaptive Speed Control System Only) |
| 7 | Instrument Cluster |
| 8 | Clockspring |
| 9 | Steering Wheel Audio Switches |
| 10 | Steering Wheel Speed Control Switches (Adaptive Speed Control Version Shown) |
| 11 | Abs (Anti-Lock Brake System) Module |
| 12 | Diagnostic Socket |
| 13 | Jaguardrive Selector |
| 14 | Adaptive Speed Control Radar Sensor (Adaptive Speed Control System Only) |
