Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

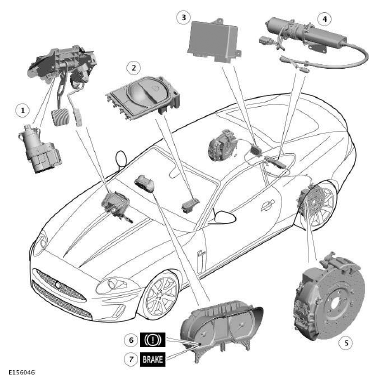

| ITEM |
DESCRIPTION |
| 1 |
Stoplamp switch |
| 2 |
Parking brake switch |
| 3 |
Parking brake control module |
| 4 |
Parking brake actuator |
| 5 |
Caliper and disc assemblies |
| 6 |
Brake warning indicator - All except NAS (North American specification) vehicles |
| 7 |
Brake warning indicator - NAS vehicles |

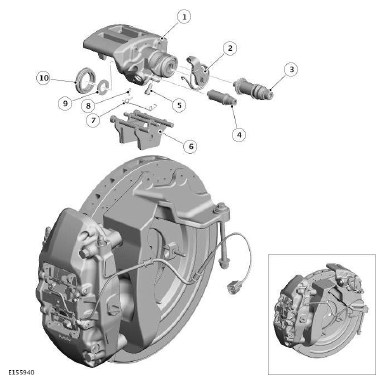

| ITEM |
DESCRIPTION |
| 1 |
Park Brake caliper body |
| 2 |
Park brake lever |
| 3 |
Primary guide pin |
| 4 |
Secondary guide pin |
| 5 |
Blanking plug |
| 6 |
Park brake pads |
| 7 |
Park brake pad spring |
| 8 |
Clip |
| 9 |
Cage |
| 10 |
Dust shield |
