Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Cleaner LH (Intake Air Distribution and Filtering - V8 5.0L Petrol, Removal and Installation).
  3. Refer to: Cooling System Partial Draining and Vacuum Filling  (General Procedures).

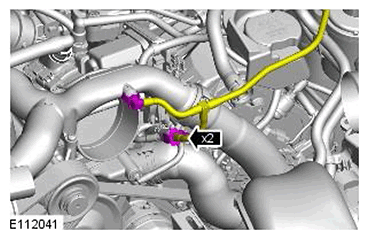

  4. G11541446

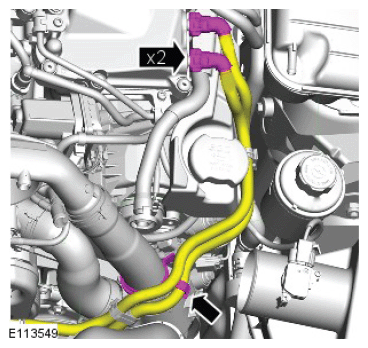

  5. G11287876
  6. G11285417
  7. NOTE: The retaining clips cannot be removed from the pipe.
    G11301430
  8. G11301431

Torque Specification: 10 Nm
