Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack.

    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Hood (Removal and Installation).
  4. Refer to: LEFT AIR CLEANER OUTLET INTERMEDIATE PIPE (Removal and Installation).
  5. Refer to: RIGHT AIR CLEANER OUTLET INTERMEDIATE PIPE (Removal and Installation).
  6. Refer to: AUXILIARY RADIATOR  (Removal and Installation).
  7. G11541353
  8. G11541355
  9. G11541412

    Torque Specification: 7 Nm

  10. G11541356

    Torque Specification: 25 Nm

  11. CAUTION: Make sure to protect the paintwork.
    G11541358

    Torque Specification: 23 Nm

  12. G11541357

    Torque Specification: 30 Nm

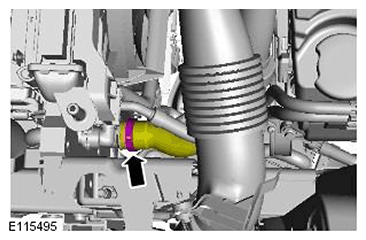

  13. G11541416
  14. G11541359
  15. G11541385

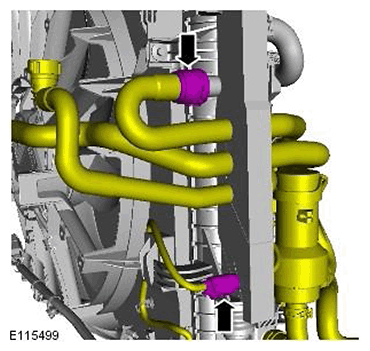

  16. G11541419
  17. G11541390

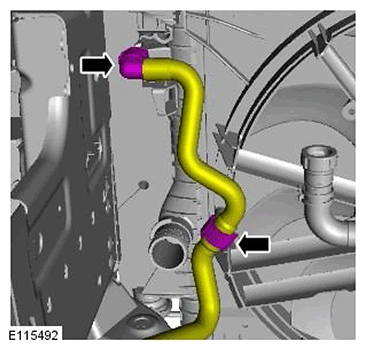

  18. G11541421
  19. G11541384

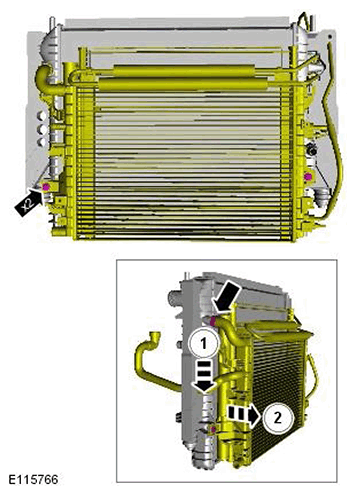

  20. G11541423

    Torque Specification: 7 Nm

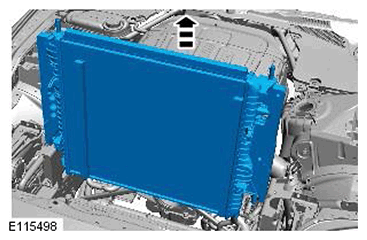

  21. G11541424

    Torque Specification: 7 Nm

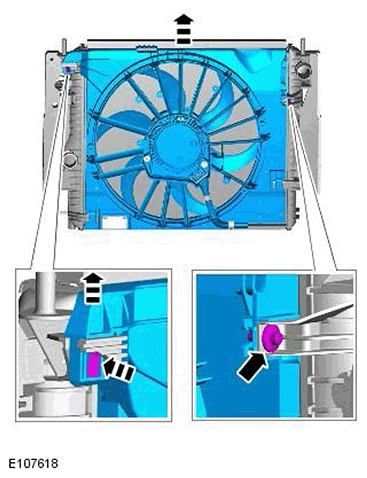

  22. G11541360
