Cooling Fan (Supercharger Vehicles)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

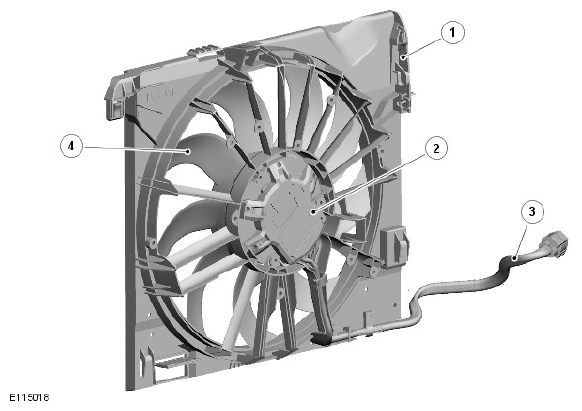

G11287758
ITEM DESCRIPTION
1 Shroud
2 Motor and fan control module
3 Harness
4 Fan

An electric, variable speed cooling fan is installed in a shroud attached to the rear of the radiator. The cooling fan is operated by a fan control module, integrated into the electric motor, under the control of the ECM (engine control module). An electrical connector at the RH (right-hand) side of the shroud provides the interface between the cooling fan harness and the vehicle wiring.
