Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Hood (Removal and Installation).
  3. WARNING: Do not work on or under a vehicle supported only by a jack.

    Always support the vehicle on safety stands.

    Raise and support the vehicle.

  4. Refer to: Radiator Splash Shield (Removal and Installation).
  5. Refer to: RIGHT AIR CLEANER OUTLET INTERMEDIATE PIPE (Removal and Installation).
  6. Refer to: LEFT AIR CLEANER OUTLET INTERMEDIATE PIPE (Removal and Installation).
  7. G11541352

    Torque Specification: 9 Nm

  8. G11541353
  9. G11541354
  10. G11541355
  11. G11541356

    Torque Specification: 25 Nm

  12. G11541357

    Torque Specification: 30 Nm

  13. CAUTION: Make sure to protect the paintwork.
    G11541358

    Torque Specification: 23 Nm

  14. G11541359
  15. G11541360

    Torque Specification: 7 Nm

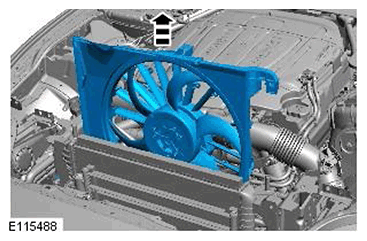

  16. G11541361
