Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
CAUTION:
  • Anti-freeze concentration must be maintained at 50%.
  • Correct installation of the Coolant expansion tank cap can be obtained by tightening the cap until an audible click is heard.
  1. Refer to: Cowl Vent Screen (Removal and Installation).
  2. G11508541

    Torque Specification: 23 Nm

  3. WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.

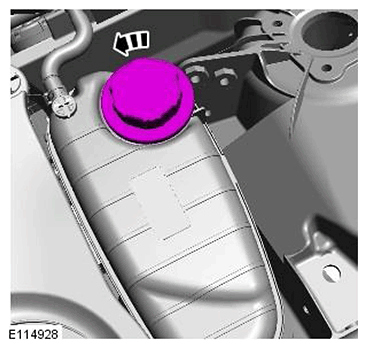

    G11541327
  4. G11541254

    Torque Specification: 9 Nm

  5. CAUTION: Be prepared to collect escaping fluids.

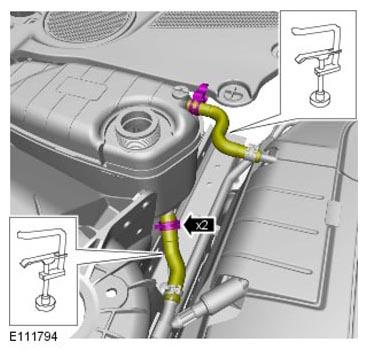

    G11301394

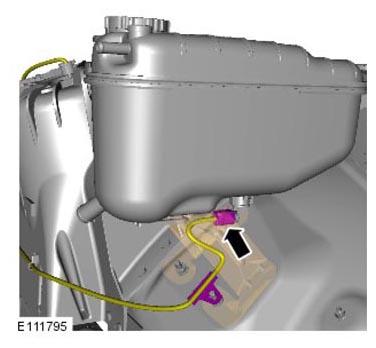

  6. G11301395

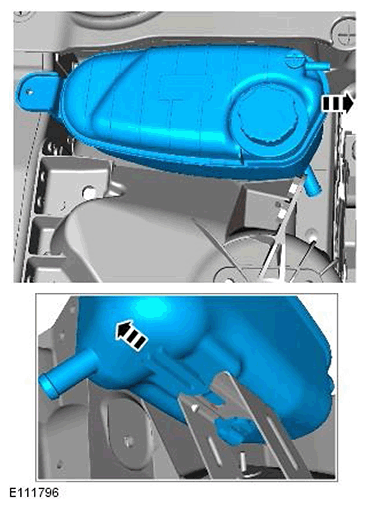

  7. G11541331
