Clock Setting
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
After battery re-connection the clock will require setting to the correct time.

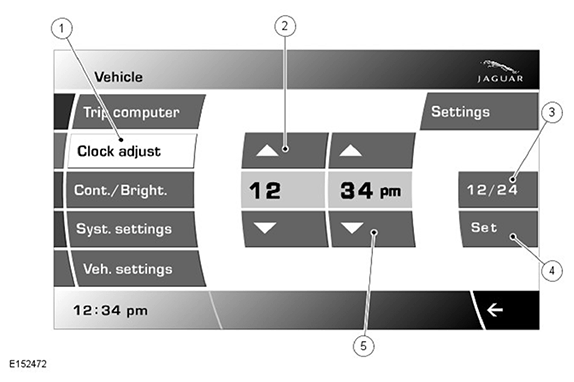

With the vehicle ignition system switched on in convenience mode and the Touch-Screen Display (TSD) switched on, select the 'Clock Adjust' screen:
- Press the Home hard-button located on the right of the Touch-Screen console to return to the home screen, then press the Vehicle soft-button from the displayed menu options.
- At the Vehicle menu, select the 'Clock Adjust' soft-button (1 ).
- The 'Clock Adjust' screen is now active. Press the 'arrow up' (2 ) or 'arrow down' (5 ) soft-buttons to adjust the hours or minutes.
- Press the '12/24' soft-button (3 ) to set the 'hours' setting to the 12 or 24 hour clock display. With the 12 hour display selected, am/pm is also displayed as appropriate.
- Press the 'Set' soft-button (4 ) to confirm the clock settings. The displayed clock time will not be set and displayed correctly until the 'Set' soft-button (4 ) is pressed. If the 'Set' soft-button (4 ) is not pressed, the clock will not be reset on exiting the 'Clock Adjust' screen.
- Return to the home screen by pressing the displayed arrow softbutton at the bottom right of the screen, or press the Home hard-button on the Touch-Screen console.
