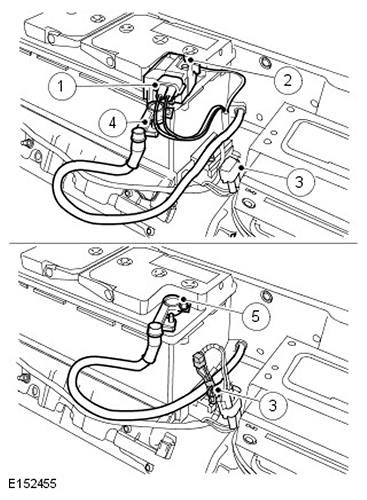

Transit relay connections

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11503865
G11283455

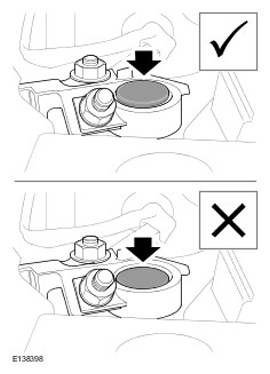

Make sure that both the positive and negative battery terminals are correctly located when installed after the transit relay has been removed and tightened to a torque specification of 6 Nm, as shown in the image above.
