Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove 2 opposing wheel nuts.

Torque Speciication: 125 Nm
Install the wheel guide tools. (Located in the vehicle tool kit.)

Torque Speciication: 20 Nm
CAUTION: The brake disc can be easily damaged. Take extra care when removing and installing the wheel.

Remove the remaining wheel nuts and slide the wheel and tire over the guide tools.

Torque Speciication: 125 Nm
Remove the brake pads.
Refer to: Brake Pads - XK-RS GT (206-03B Front Disc Brake - Vehicles With: Carbon Ceramic Brakes, Removal and Installation).

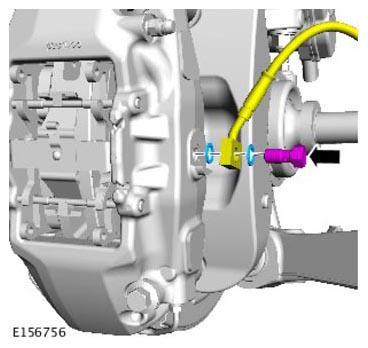

CAUTION:
- Be prepared to collect escaping brake fluid.
- Always plug any open connections to prevent contamination.
NOTE: Discard the sealing washers.

Torque Speciication: 42 Nm

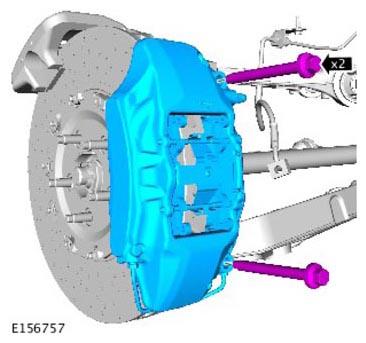

CAUTION: Discard the bolts.

Torque Speciication: 110 Nm
